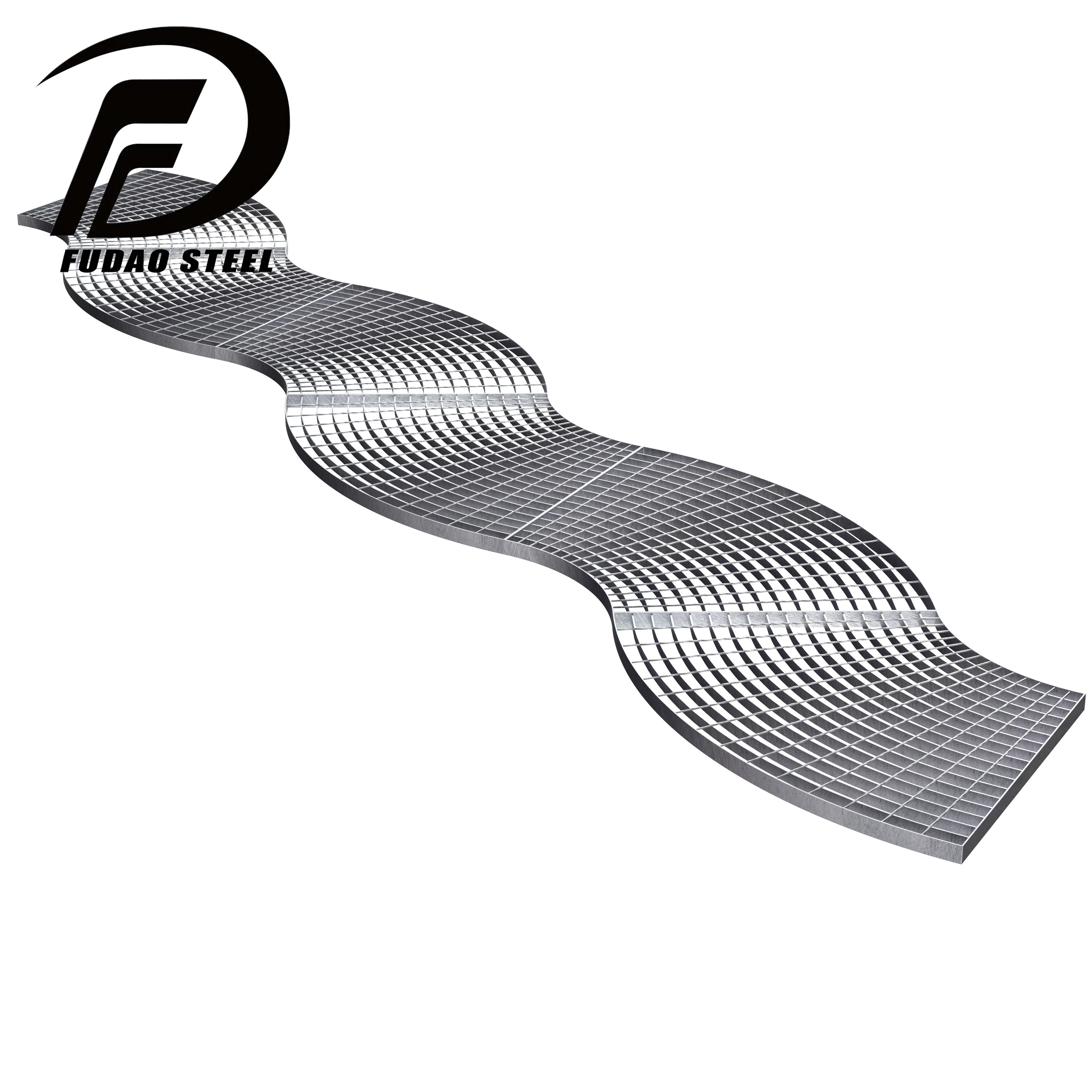

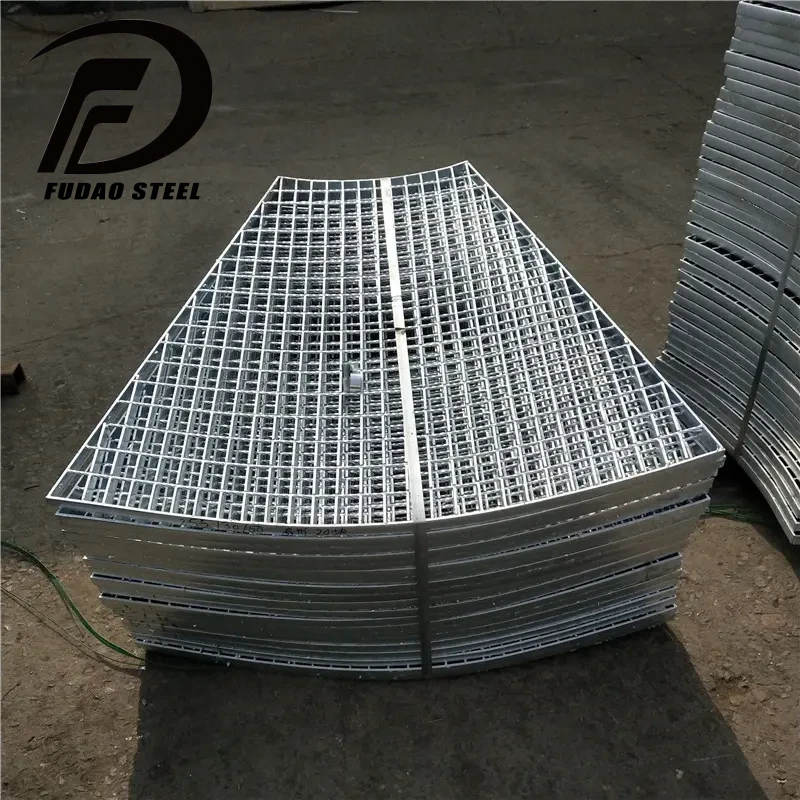

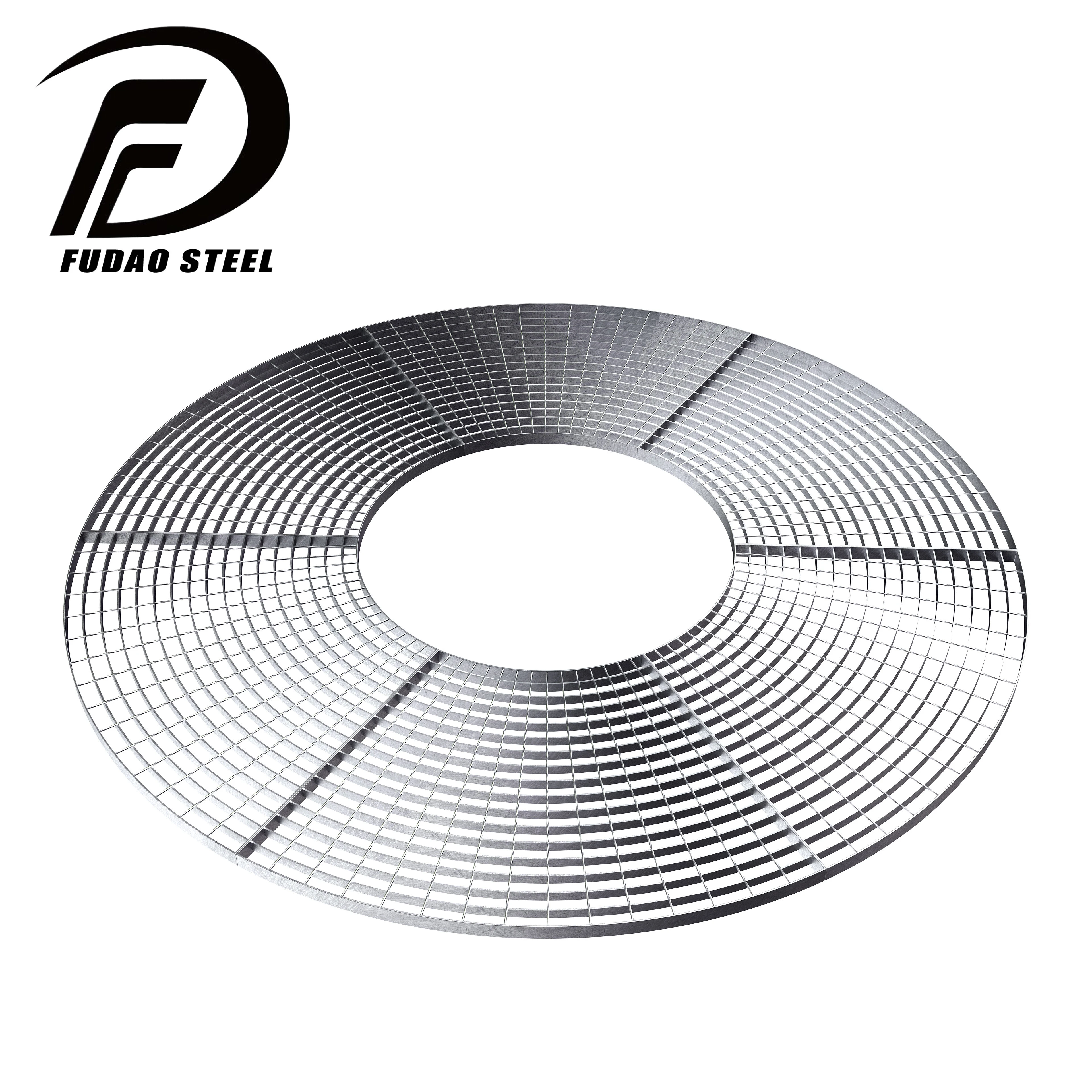

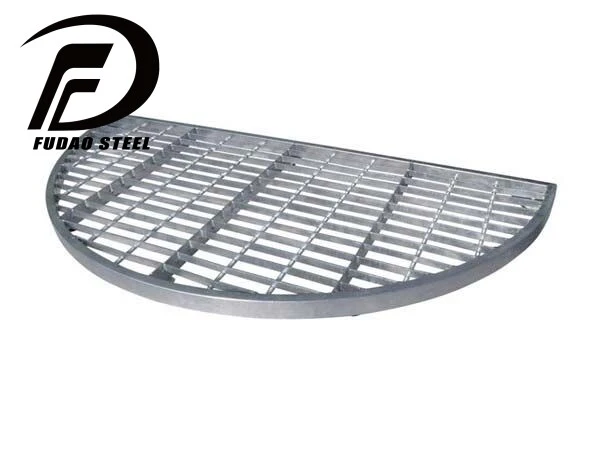

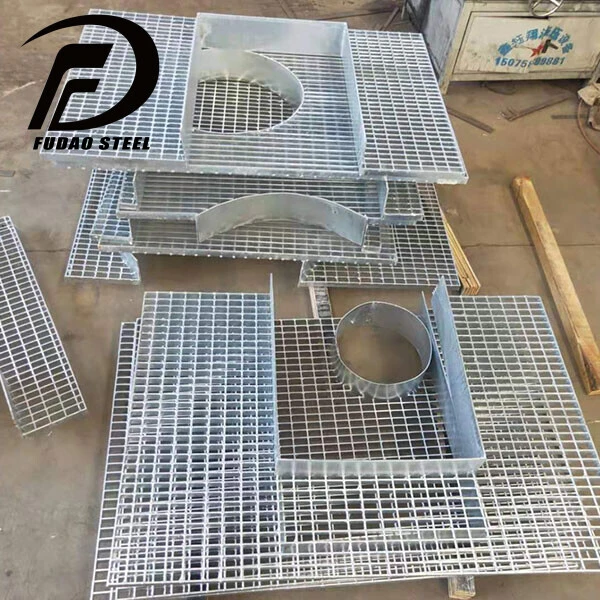

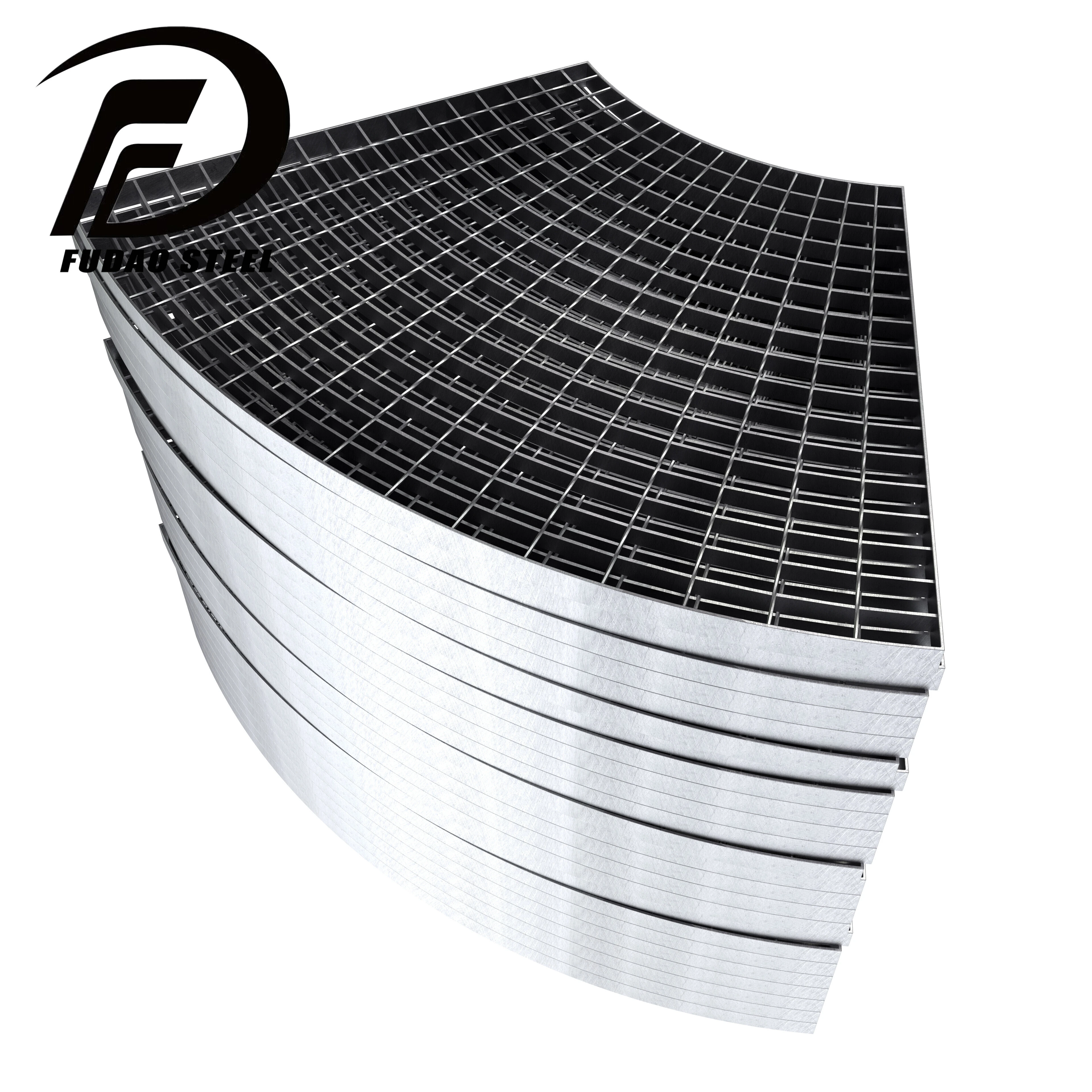

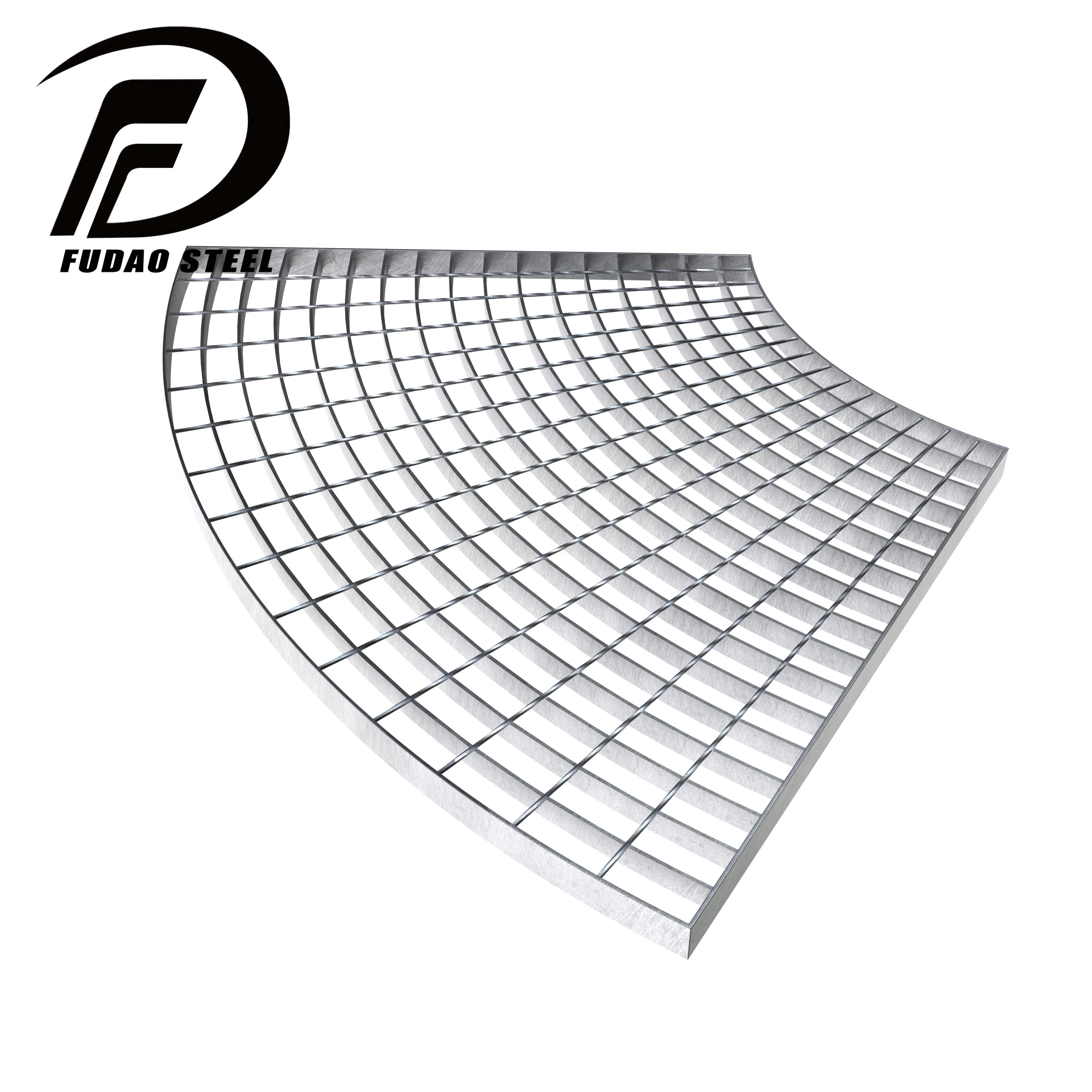

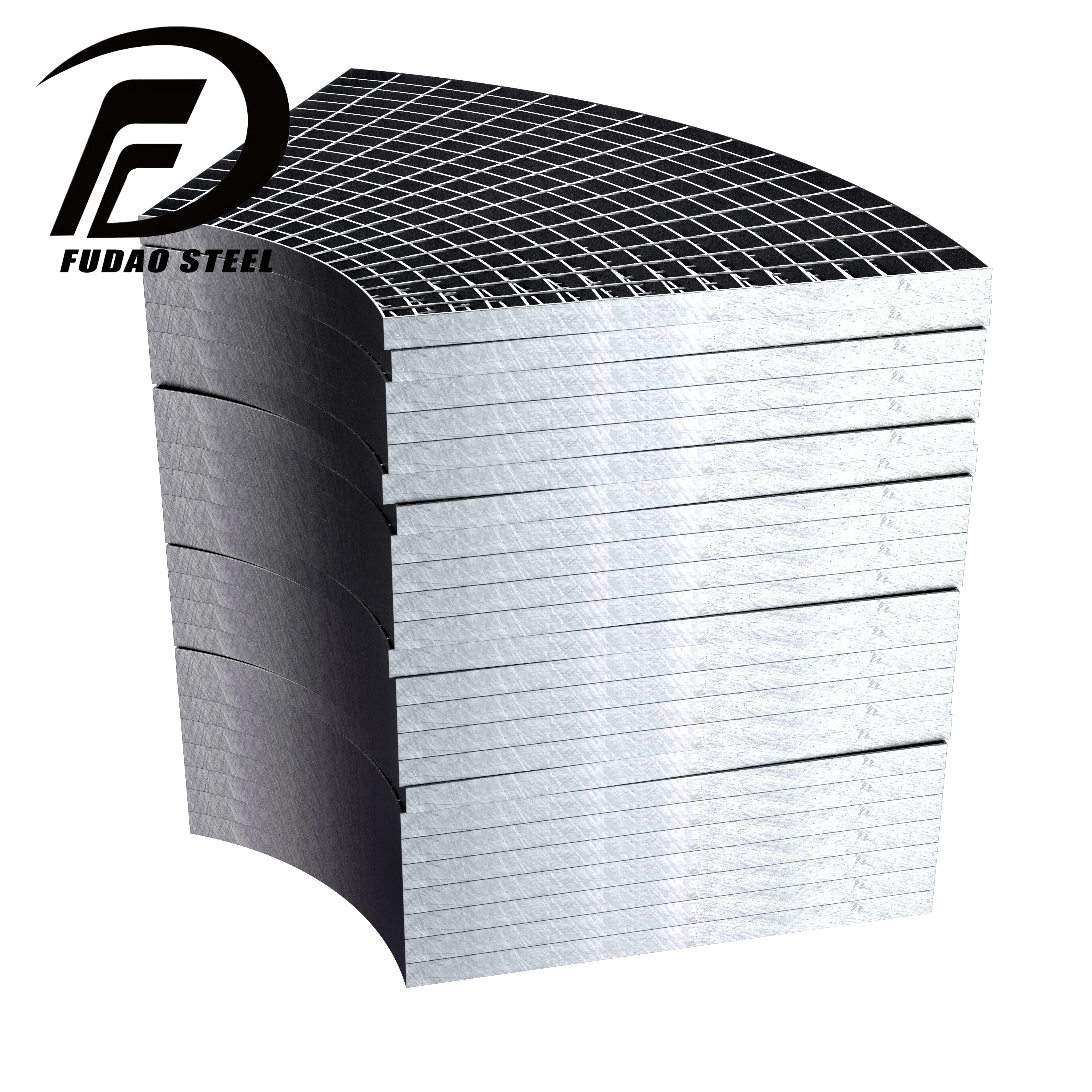

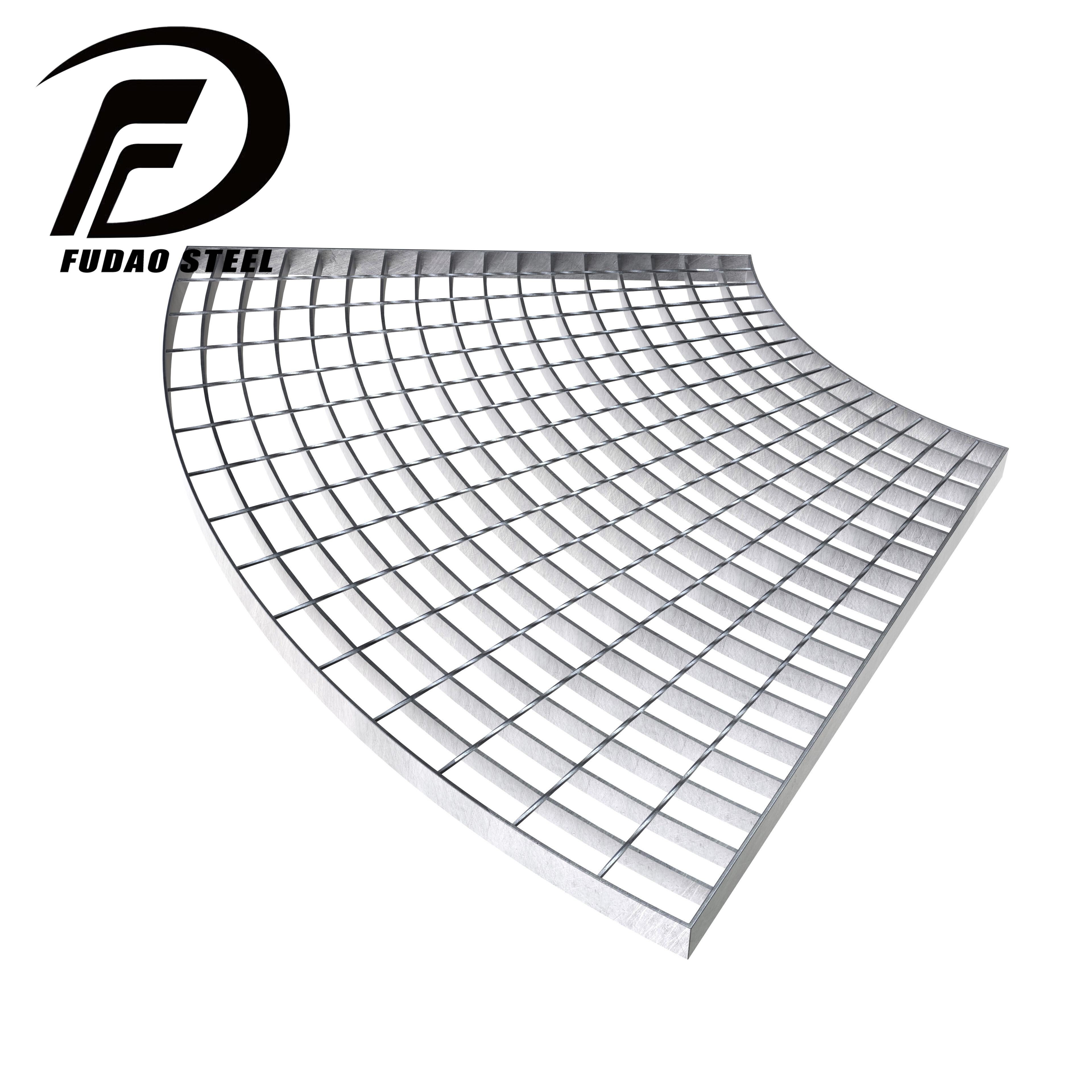

Irregular Steel Grating

Product Parameters:

Specification:

• Materials: Stainless steel or high quality Q 235 carbon steel.
• Surface treatment: Hot galvanized, cold galvanized, painted or stainless steel polished, pickled.
• Bearing bar (mm): 20 × 5, 25 × 3, 25 × 4, 25 × 5, 30 × 3, 30 × 4, 30 × 5, 32 × 3, 32 × 5, 40 × 5, (50..75) × 8, etc.
• Bearing bar pitch: 25, 30, 30.16, 32.5, 34.3, 40, 50, 60, 62, 65 mm, etc.
• Cross bar: 5 × 5, 6 × 6, 8 × 8 mm.
• Cross bar pitch: 40, 50, 60, 65, 76, 100, 101.6, 120, 130 mm or as customers requirement.

Features:

• Avoid the destruction of galvanized layer.
• Non-slip, anti-corrosion.
• High load bearing capacity.
• Good drainage function.
• Easy to install and maintain.
• Different shapes meet different needs.

Applications of special shaped steel grating:

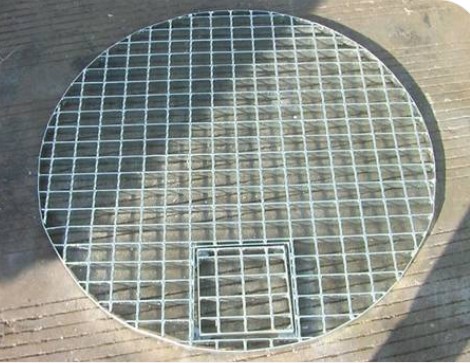

• Well cover.

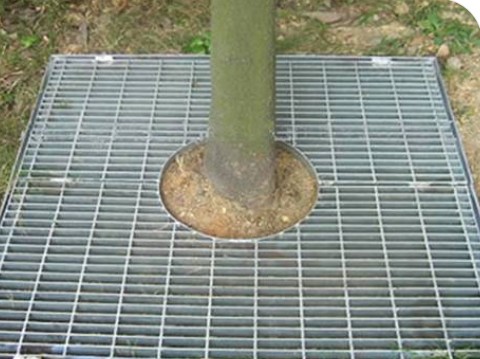

• Tree pool cover.
• Industrial operating platform and pipeline platform of many kinds of factories.
• Fountain.
• Walkway.
• Pipe platform.
• Tank platform.
