Flooring Galvanized Steel Bar Pedestrian Grating

2023-12-15

Product Introduction

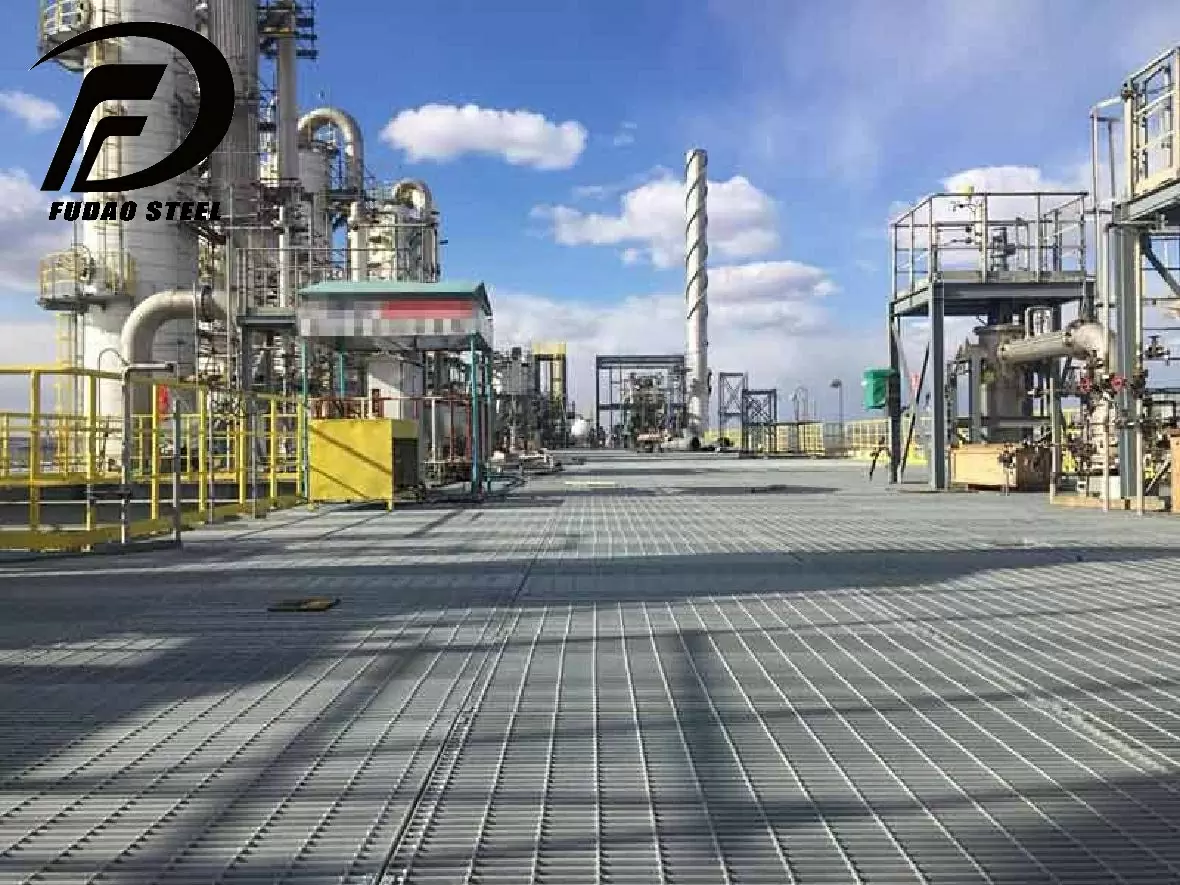

These patterns are the most commonly specified and installed. This type of grating with its 30mm load bar centres has the greatest resistance to surface impact. It is used extensively in Power Stations, Refineries, Sewerage Treatment Plants, Grain Silos, Chemical Plants

Product description

Flooring Galvanized Steel Bar Pedestrian Grating Description

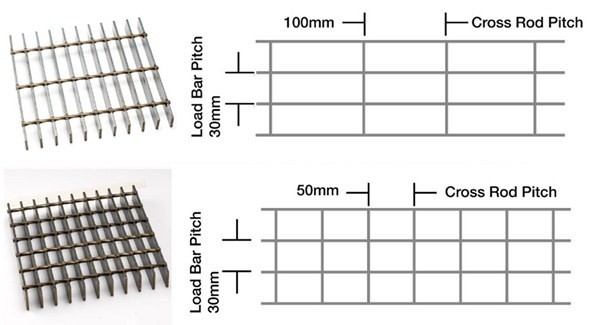

1. Bearing bar pitch is 30mm

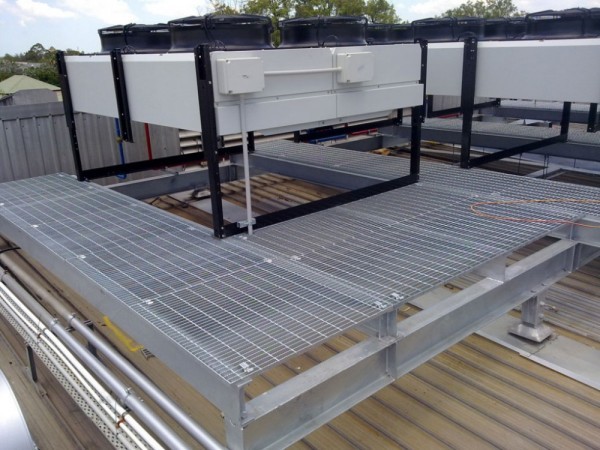

These patterns are the most commonly specified and installed. This type of grating with its 30mm load bar centres has the greatest resistance to surface impact. It is used extensively in Power Stations, Refineries, Sewerage Treatment Plants, Grain Silos, Chemical Plants and for trafficable drain grates and stair treads. In serrated form, patterns A & B are used in wet, greasy areas especially in the oil industry on offshore production platforms.

Hualian Steel Structure

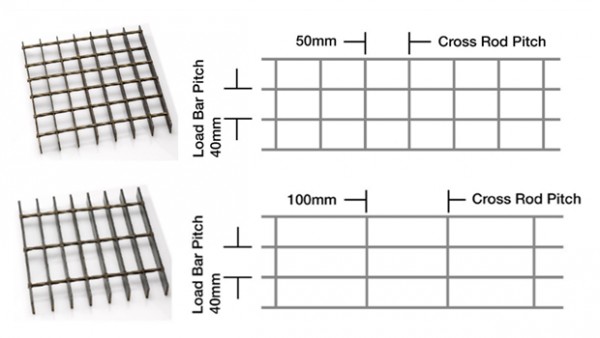

2. Bearing bar pitch is 40mm

Bearing bar pitch 40mm is floor steel grating is lighter and more economical than the bearing bar pitch 30mm Steel Bar Flooring, while still conforming to the requirements of AS 1657.

This range is ideal in areas which do not have to withstand high impacts or heavy loading.

Hualian Steel Structure

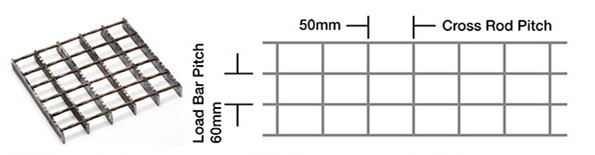

3. Bearing bar pitch is 60mm

60mm pitch bearing bar steel gratinghas been specifically developed for the mining industry where spillage of material onto floors is a problem. The large square openings (nominally 60 x 50) allow most materials to fall through the grating, thus keeping the walking surface clear and safe. This product is frequently specified for conveyor walkways and floors in crusher buildings, process plants and transfer stations.

Hualian Steel Structure

4. Flooring Galvanized Steel Pedestrian Grating Feature:
1) High strength and light structure
2) Powerful anti-corrosion, durable and long working life
3) Beautiful appearance, bright surface
4) No dirt-rain-snow deposit, automatic cleaning, easy maintenance.
5) Good ventilation, day-lighting, heat-dispersing, resistant to sliding and explosion
6) Easy installation

Hualian Steel Structure

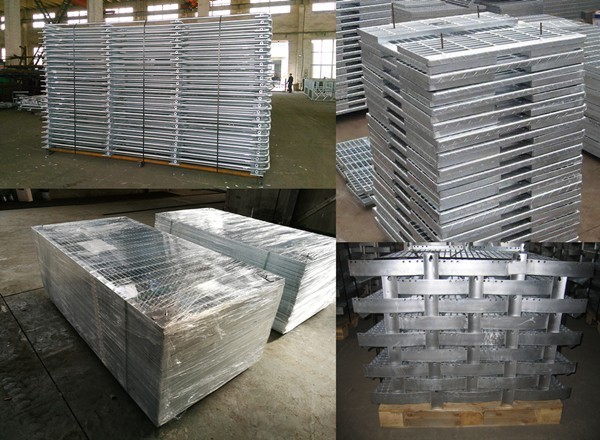

5. Packing detail: packed in bundle then fixed by steel belt as the general export package and we also could pack it according to customers' requirement.

Hualian Steel Structure

6. Delivery detail: within 7-20 work days after confirmation.

7. Our Service:

We can design the shop drawings according to custiomer's structural drawings.

We can provide samples if you need.

We can offer customized service as customer's per requirements.
