3D Curvy Welded Fence

2023-07-20

Product Introduction

Curvy welded fence is also known as curvy welded fencing, triangle mesh fence,3D fence, etc.is a kind of specially designed welded wire mesh with V-shaped bending curves in its longitudinal direction. Welded Wire Panel Fence is made of high quality low carbon steel wire, galvanized wire. Then will be hot dipped galvanized,powder coated or pvc coated.

PRODUCT DESCRIPTION

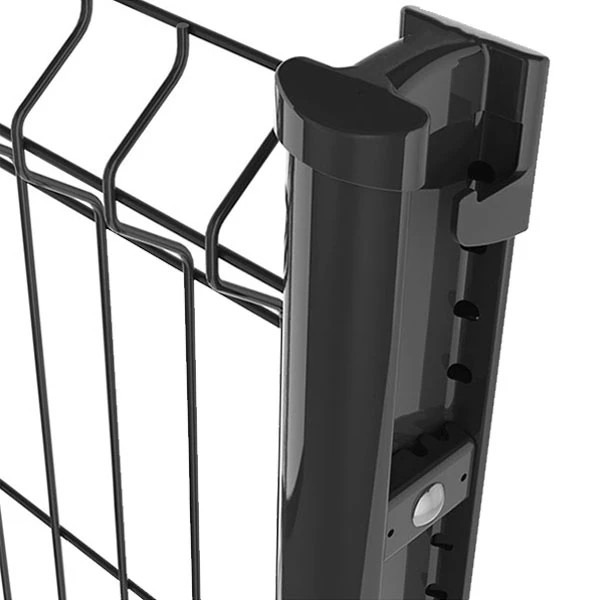

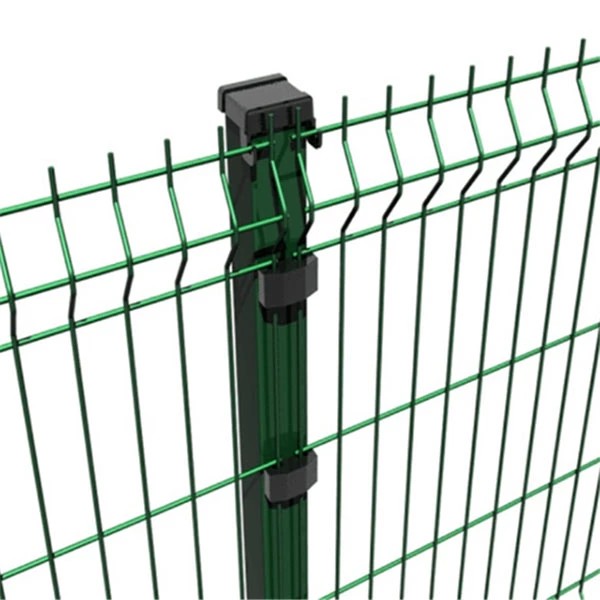

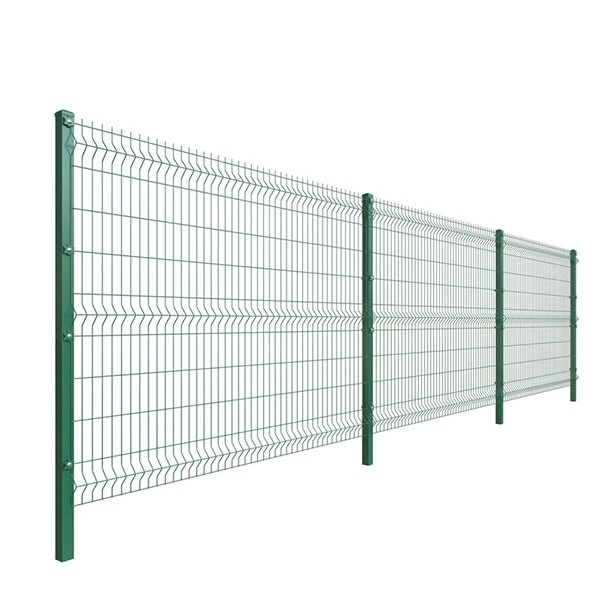

Welded Wire Panel Fence looks modern and attractive. Generally, the number of V-shaped curves varies as the height of welded wire mesh varies. Fence panel will be fixed to the post by suitable clips according to different post type. Due to its simple structure, see-through panel, easy installation, nice appearance, the welded mesh fence are more and more popular.

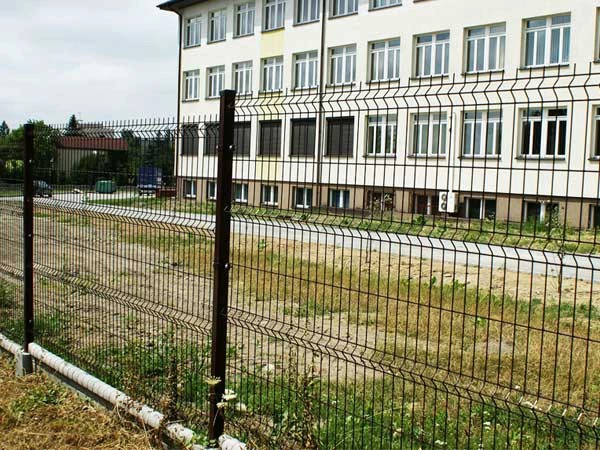

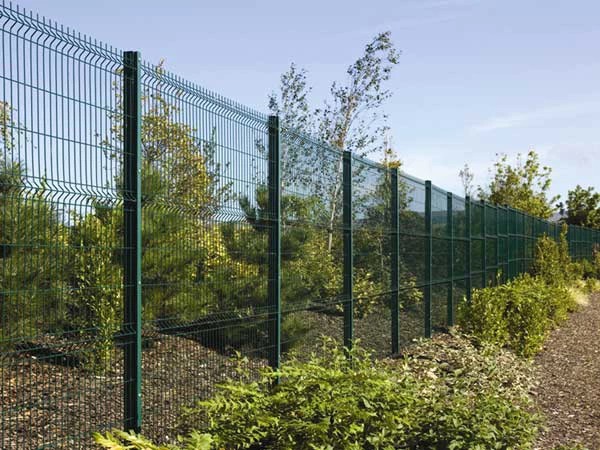

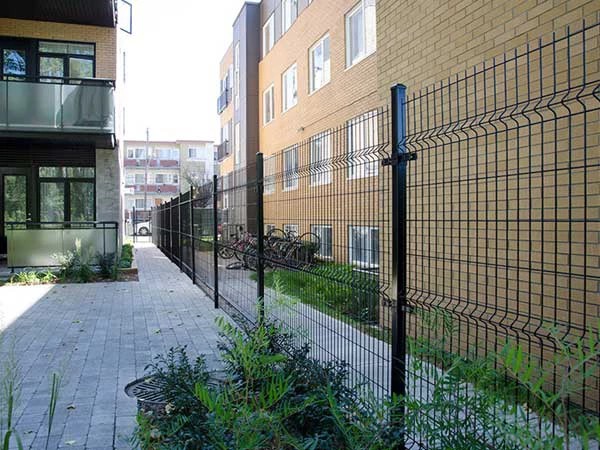

It is made of high quality carbon steel wires where wires in the horizontal and vertical direction are welded at their junctions to provide a rigid wire mesh fence.Its attractive appearance, rigid structure and excellent visibility make it become a popular security fence that is widely used in railways, airports, schools, factories, residential areas, gardens, parks, sports stadiums, etc.

SPECIFICATIONS

Panel wire:

Q195;Q235 Low carbon steel wire

Post:

Hot dipped galvanized tube, no coated tube

Bolts:

M8 anti-vandal steel or stainless steel

Surface Treatment:

Hot dipped galvanized, PVC coated, Powder coated

Color:

Green, black, yellow, white,blue, etc.

Processing of welded wire mesh fence:

Material – Straightening & cut wire – Welding – Galvanizing – Powder coating – Packaging

Panel height	Panel length	Wire diameter	Mesh size	Curves
0.63m	2.0m 2.5m 3.0m	Galvanized+PVC painted 3.85mm/4.0mm 4.85mm/5.0mm Galvanized+PVC coated 3.0mm/4.0mm 4.0mm/5.0mm	50150mm 50200mm 55100mm 55200mm	2
1.03m				2
1.23m				2
1.5m				3
1.53m				3
1.7m				3
1.73m				3
1.8m				4
1.83m				4
2.0m				4
2.03m				4

APPLICATION

Beautiful appearance:

Its unique bending curves make it have an authentic 3D outlook compared with other fence panels.

Ridge structure:

Its bending curves not only offer a beautiful surface but also strengthen its rigidity.

Cost effective:

It provides a competitive price while maintaining high quality, rigidity and long life service.

Corrosion resistance & weatherproof performance:

Its galvanized and powder coating surface give excellent rust & corrosion resistance to withstand various harsh environment conditions.

Long service life:

The galvanized and powder coating treatment allows the curvy welded fence working properly for 10 years.

Less maintenance:

Its excellent corrosion resistance and weatherproof performances keep it work properly under harsh environments and extend its maintenance period.

PACKAGE & DELIVERY

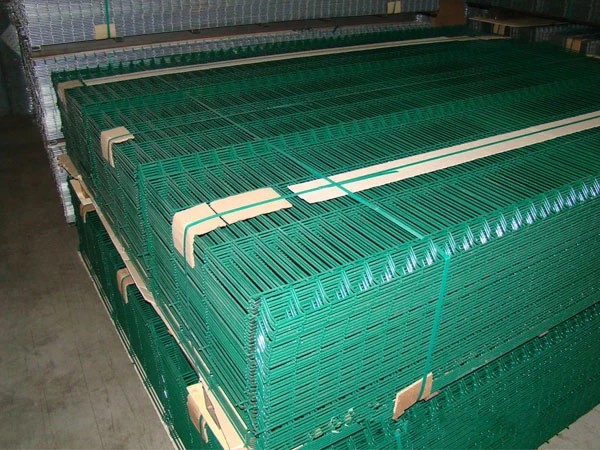

1. It has rubber mat at the bottom of the pallet to avoid the pallet destroyed the panels
2. It has 4 metal corners to keep the pallet more strong.
3. It has metal plate under the plastic bandage to reduce the apressure of fence panels.

4. It has wooden plate at the top of fence panel which can protect the fence panels avoid being crushed by other pallets.
