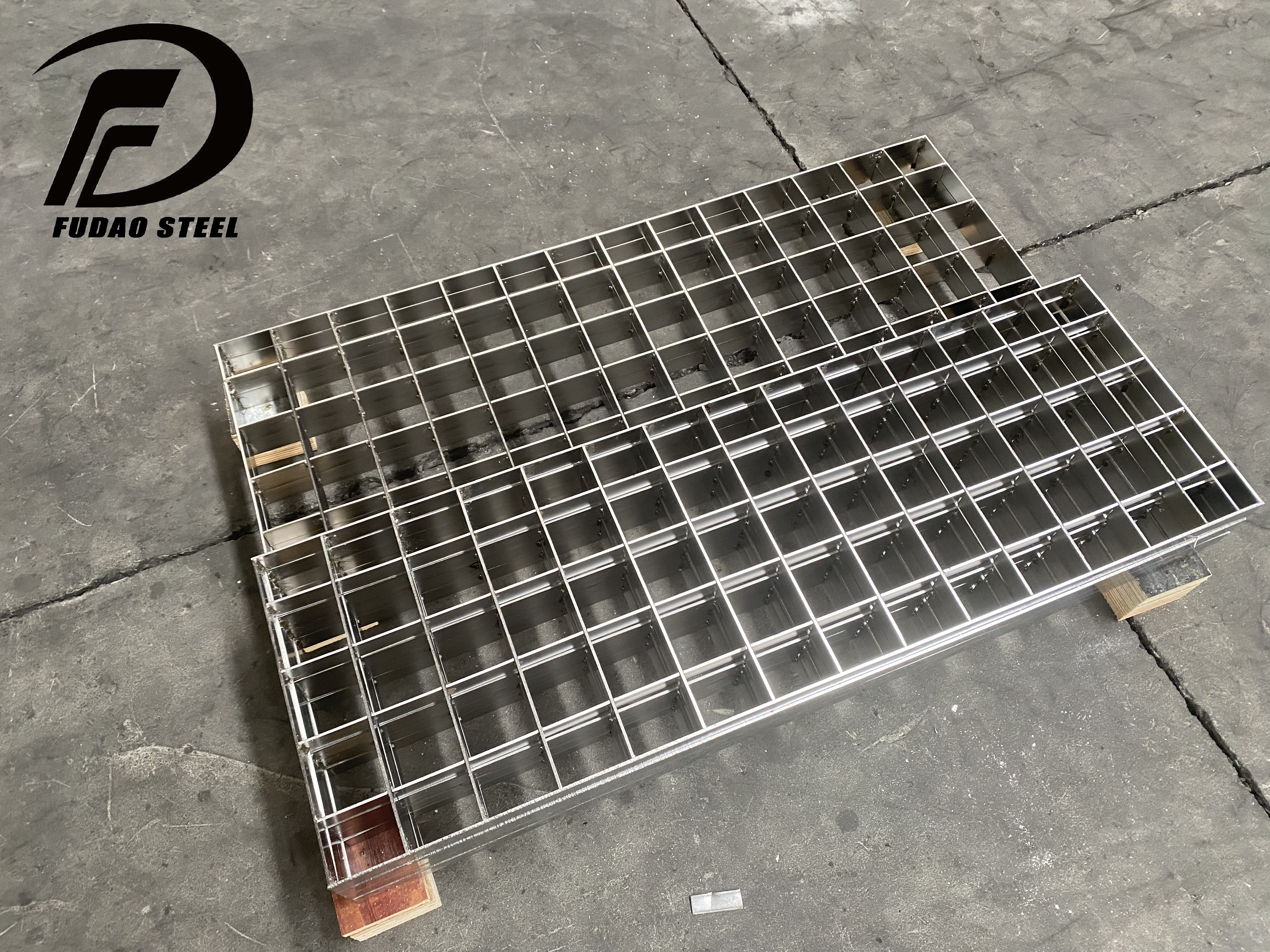

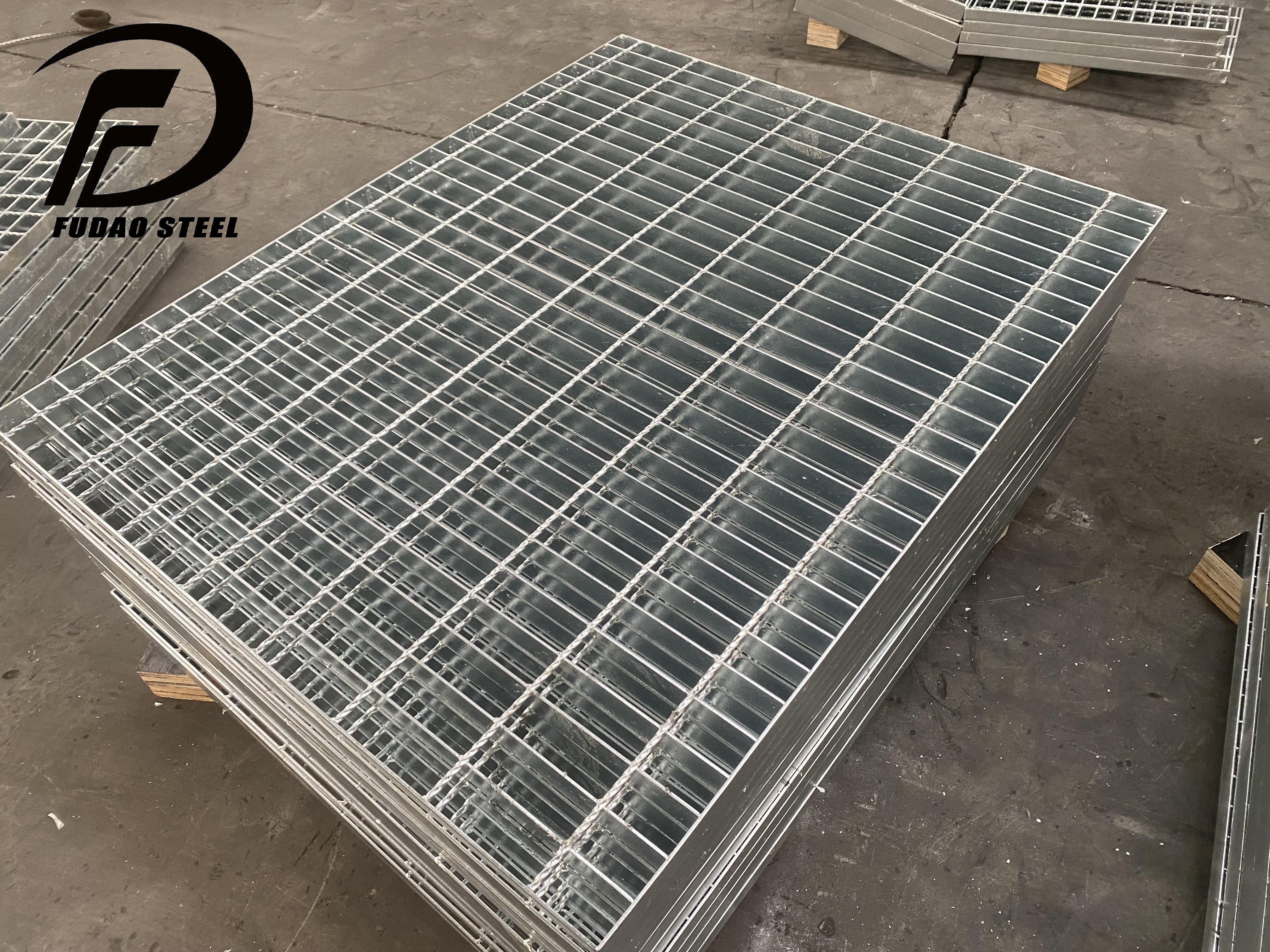

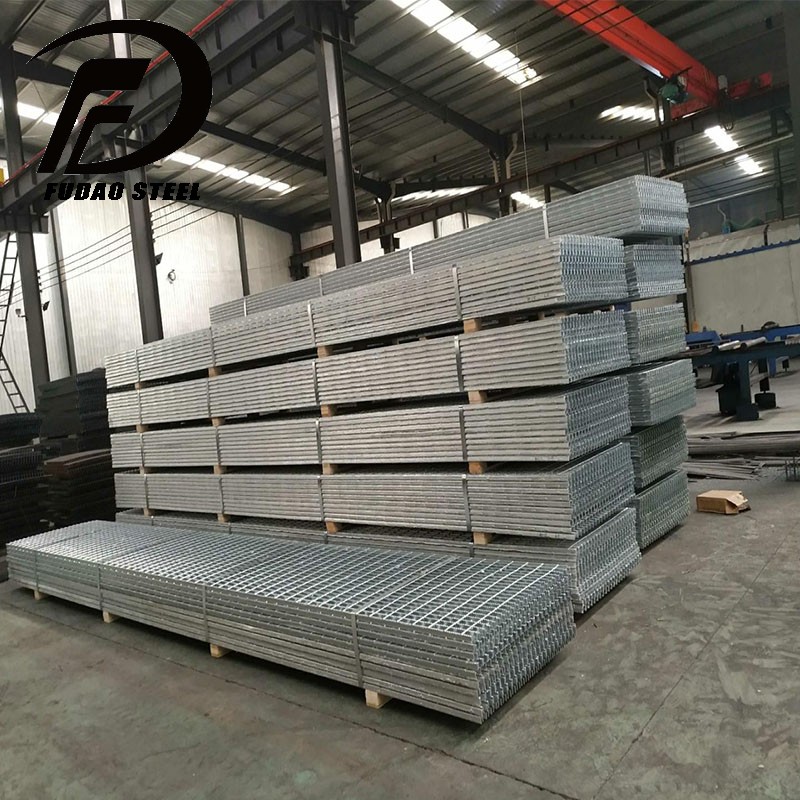

Walkway Grating Flat Grill Grate

Name: Walkway Grating Flat Grill Grate
SKU: 0

2023-06-07

Product Introduction

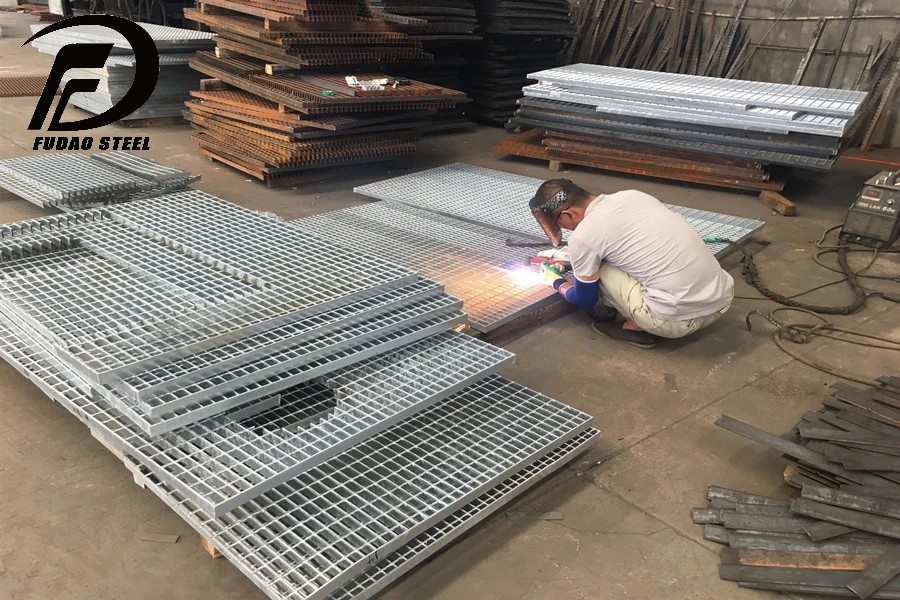

Steel Grating is made of flat steel and bars by welding with certain distances.
It goes through cutting,opening, edging and other processes.
The products enjoy the features of high strength, light structure, high bearing, convenience
for loading and other properties. The hot dipped zinc coating gives the product excellent
anti-corrosion resistance.

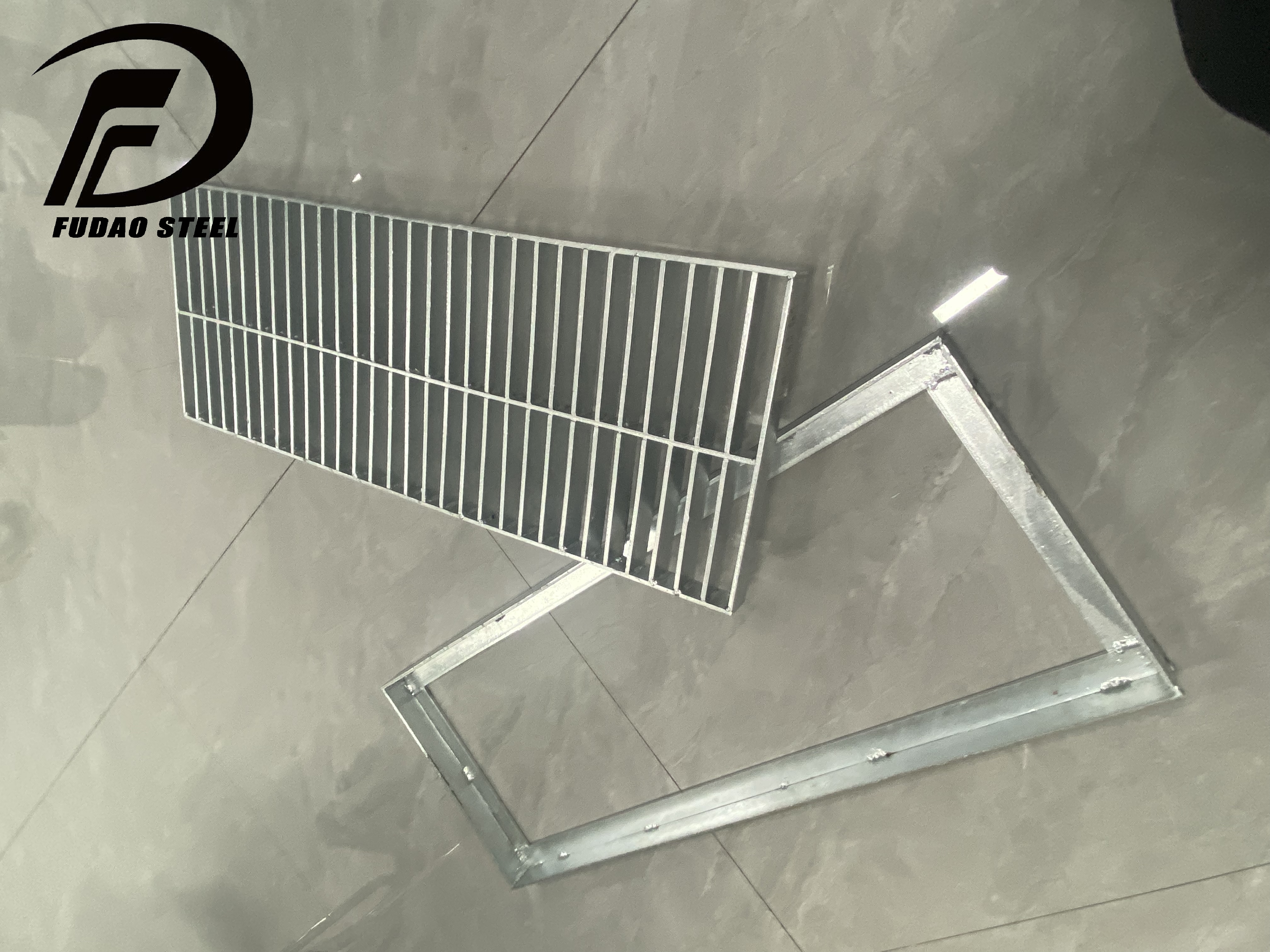

It is widely used in the platform, corridor, bridge, well covers, stairs, fencing for petroleum,
chemical, power plant, waste treatment plant, civil engineering projects and environmental projects.

Product Description

Common Specification Of Steel Grating
Material Standard	ASTM A36, A1011, A569, Q235, S275JR,Stainless steel 304, Mild steel & Low carbon steel, etc
Bearing Bar *(widththickness)**	25x3, 25x4, 25x4.5, 25x5, 30x3, 30x4, 30x4.5, 30x5, 32x5, 40x5, 50x5, 65x5, 75x6, 75x10, 100 x10mm, etc; I bar: 25x5x3, 30x5x3, 32x5x3, 40x5x3, etc US standard: 1''x3/16'', 1 1/4''x3/16'', 1 1/2''x3/16'', 1''x1/4'',1 1/4''x1/4'', 1 1/2''x1/4'', 1''x1/8'', 1 1/4''x1/8'', 1 1/2''x1/8'' , etc
Bearing Bar Pitch	12.5, 15, 20, 23.85, 25, 30, 30.16, 30.3,32.5, 34.3, 35, 38.1, 40, 41.25, 60, 80mm etc. US standard: 19-w-4, 15-w-4, 11-w-4, 19-w-2, 15-w-2 etc.
Twisted Cross Bar Pitch	38.1, 50, 60, 76, 80, 100, 101.6, 120mm, 2'' & 4'' etc
Surface treatment	Untreated(black), hot-dipped galvanized ,powder coated, electroplate, painting or as per customers' requirement.

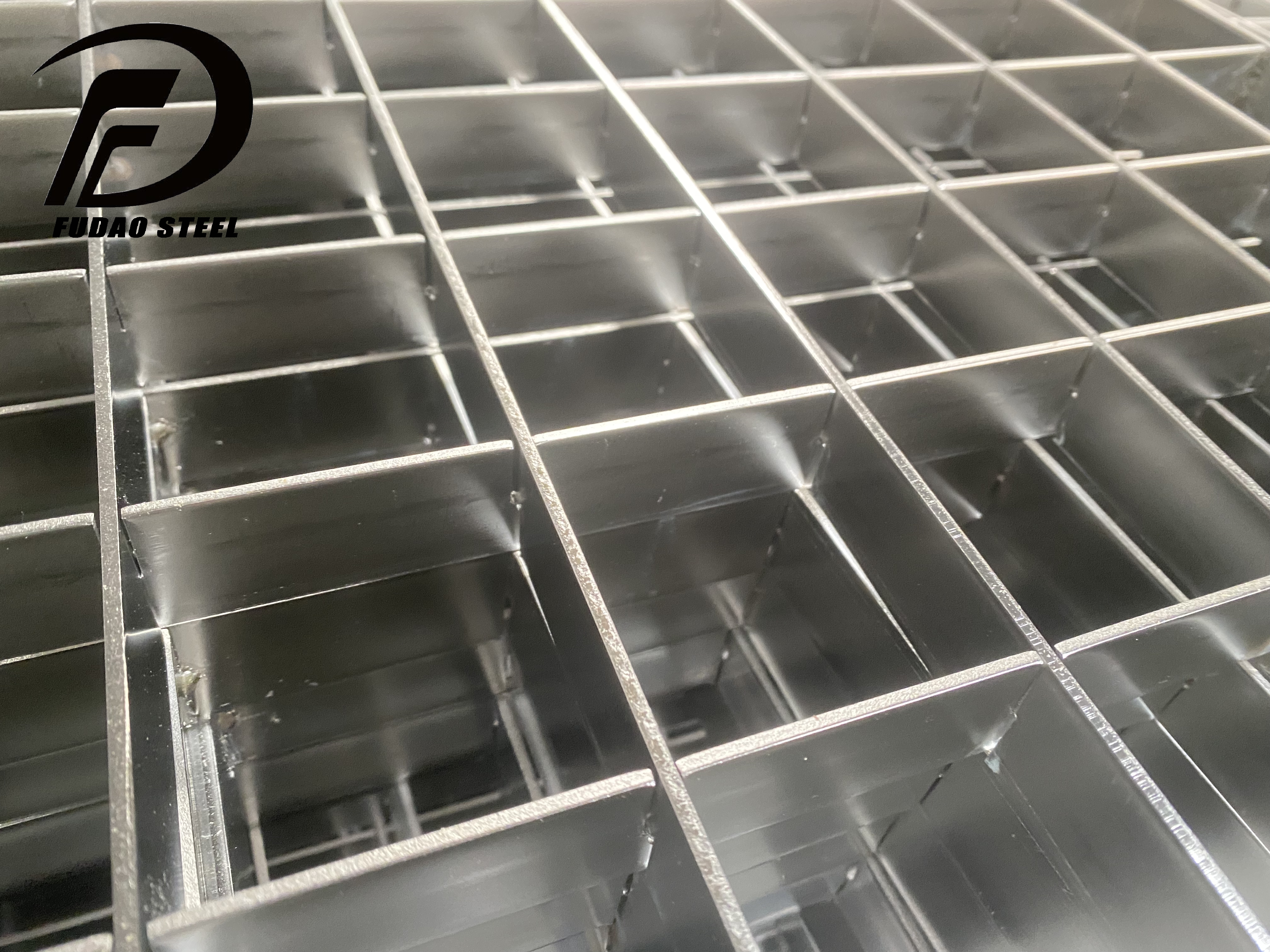

Grating Style	Plain / Smooth, Serrated /teeth, I bar, serrated I bar

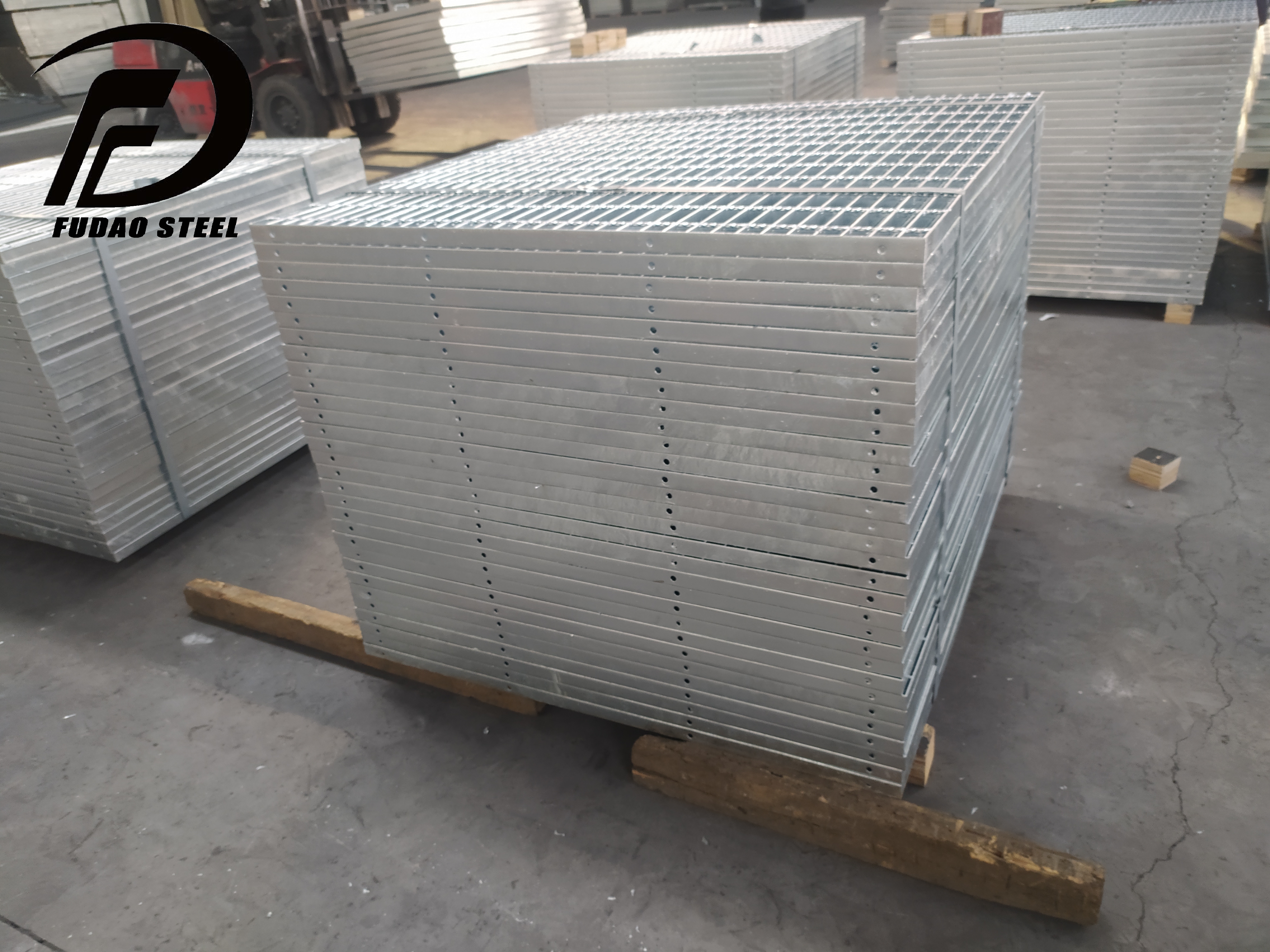

Packing	LCL(less than one container load): packed with plastic film then on the pallets FCL(full container load): nude packing Other special package :according to customers' requirements
Customization of your drawing or your unique sizes are available

Steel Grating is made of flat steel and bars by welding with certain distances.
It goes through cutting,opening, edging and other processes.
The products enjoy the features of high strength, light structure, high bearing, convenience
for loading and other properties. The hot dipped zinc coating gives the product excellent
anti-corrosion resistance.

It is widely used in the platform, corridor, bridge, well covers, stairs, fencing for petroleum,
chemical, power plant, waste treatment plant, civil engineering projects and environmental projects.

Advantage:
No corrosion traps around joints
High strength to weight ratio
Allows shaping without loss of strength
Available plain or serrated
Allows passage of heat, light, water and ice.

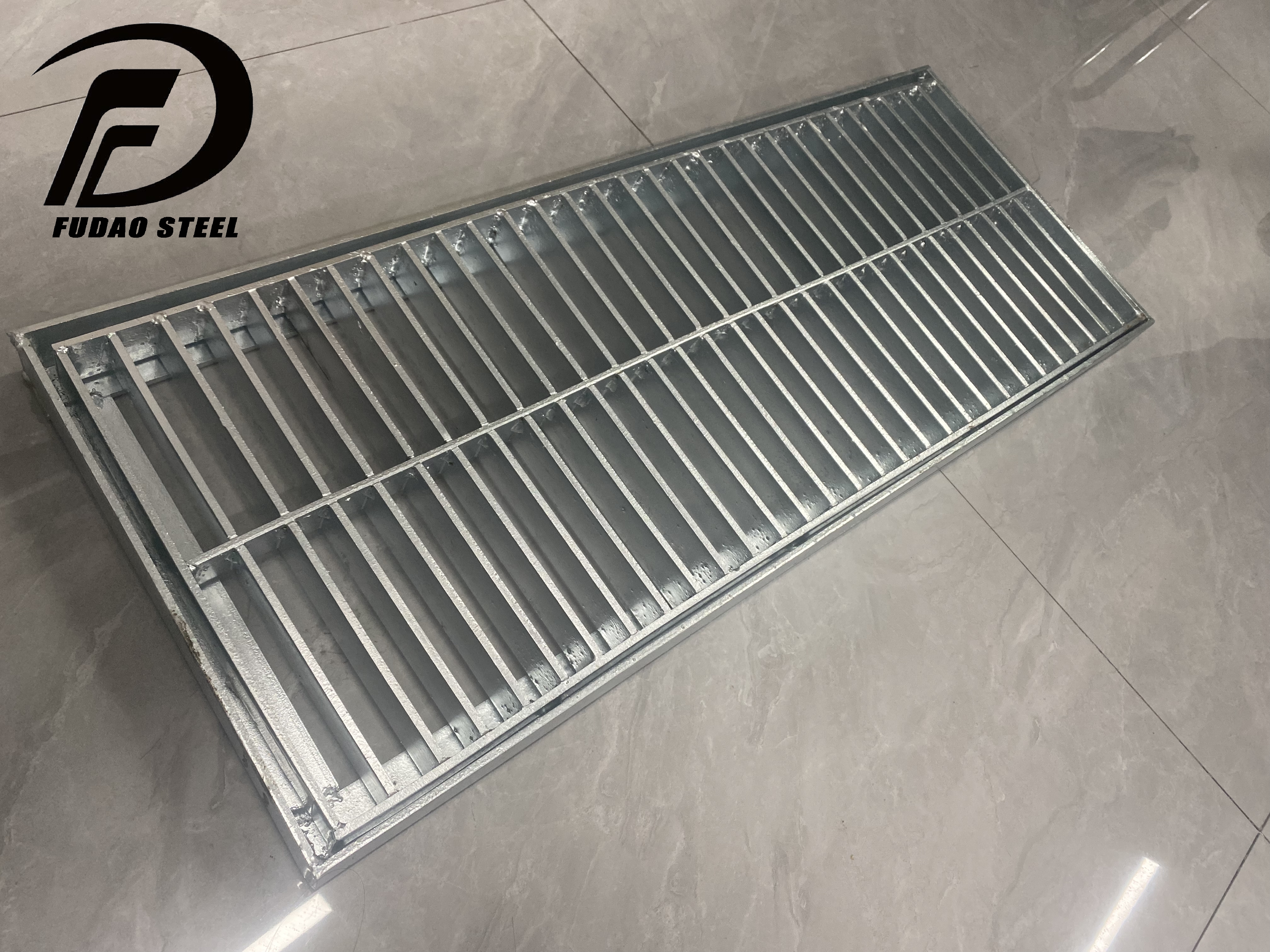

Retangular shape / Common design
This is a standard shape be used wide range in application
